Items needed to complete Oriolus 1.5 m

  • 2mm Balsasheets
  • 4mm Balsasheet
  • 3mm Plywood Birch
  • 1mm Aircraft Plywood
  • Pinewood 3mm x 3mm
  • 2 Pcs Carbon Tube 6mm x 5mm ~lenght:692mm
  • 1 Pcs Carbontube 10mm x 8mm lenght:700mm
  • 400mm of 4mm Coarbon Rod
  • 400mm Brass Tube 4.2m X 5mm
  • 2 Nylonscrews M4
  • 2 Notches M4
  • Bowdencables 2mm
  • Steelwire 0.8mm (for the pushers)
  • 1.5mmm Carbon Rods (2000mm)
  • Oralight Coverfoil
  • 2x Servos 9mm (D-Power DS-140BB MG or equal)
  • 2x Servos 12mm (D-Power DS-225BBMG or equal)

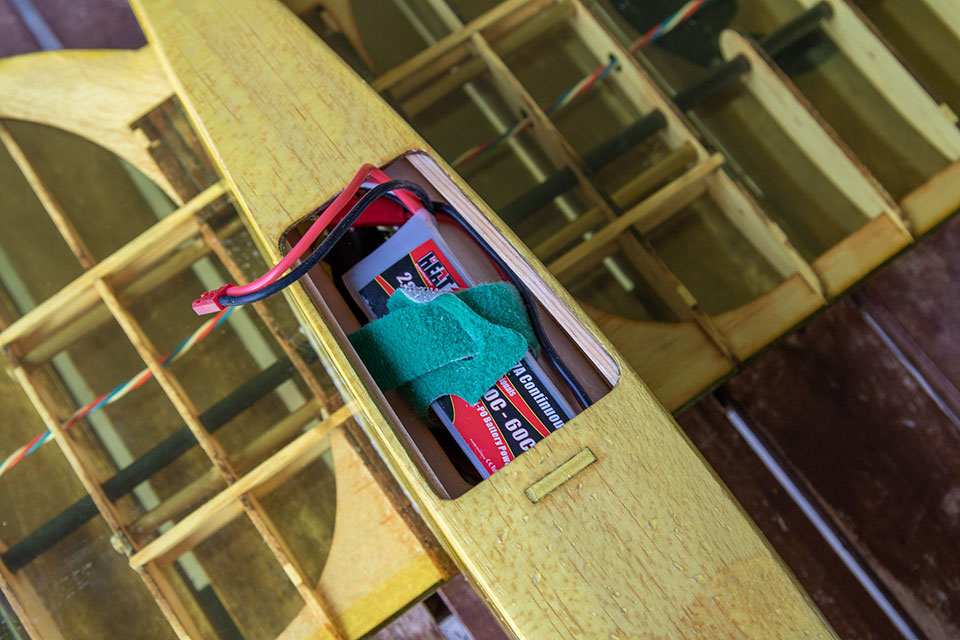

  • 2s Lipo 900mah - 1300mah
  • Reciever
  • 22mm Diameter Brushless Outrunner incl. ESC (Roxxy BL 2220-15 or similar)
  • and Glue of course...etc.

Download Files here:


Contact me:

Having a Question, a Suggestion or Issues?
Drop me a Mail or contact me on facebook.
Please send me Photos of your Firefly if you build one, so i can set up a little Gallery.

firefly ät lukaslacher.ch

Facebook

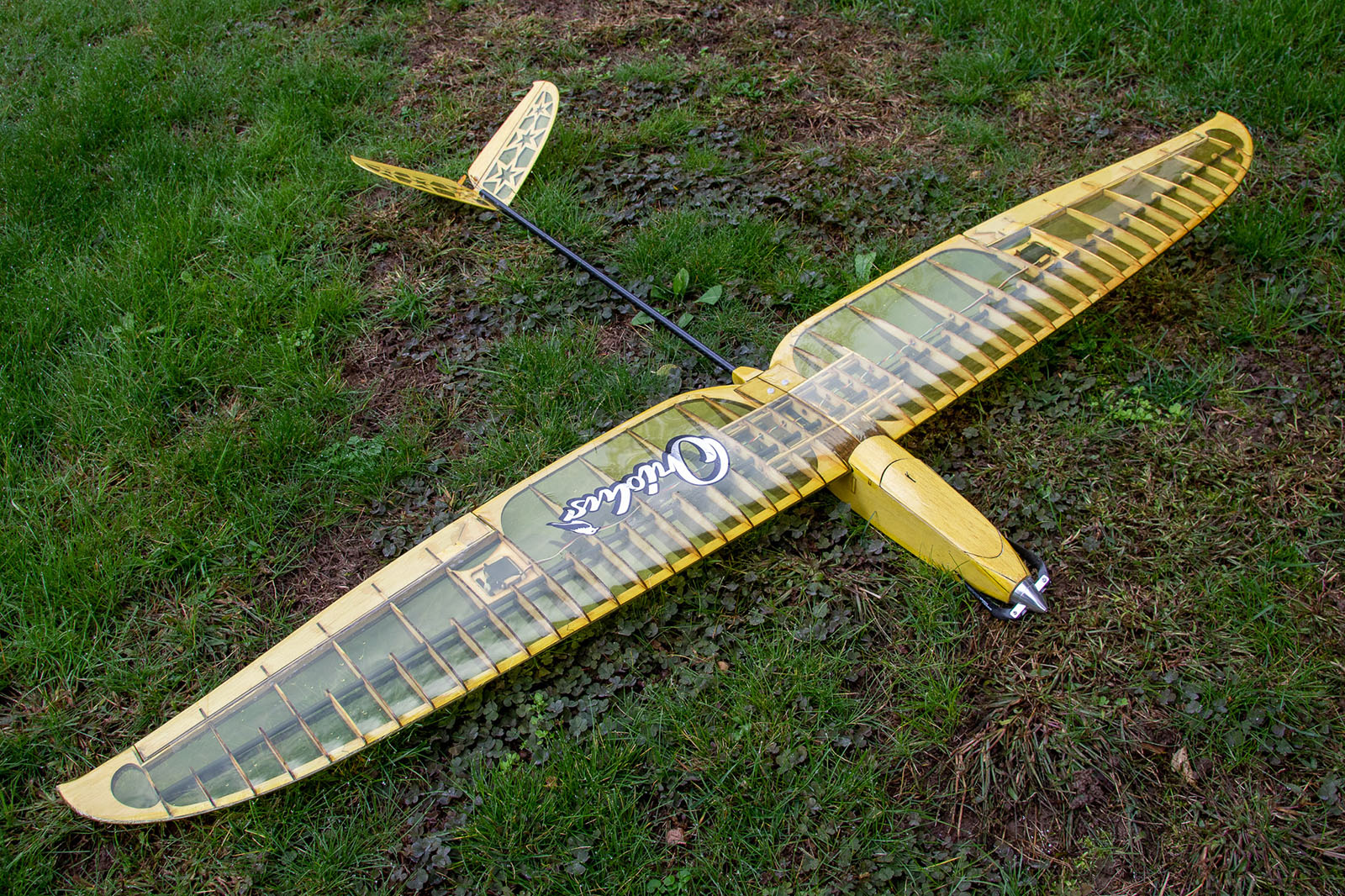

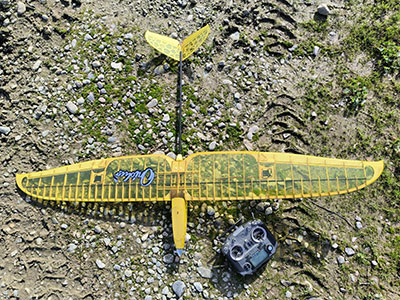

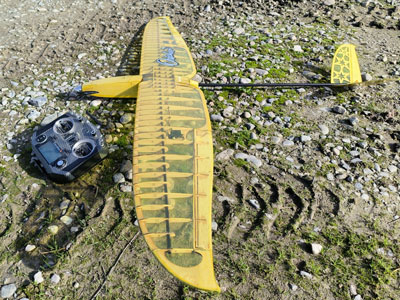

Oriolus 1.5

This is the first light Version of Oriolus, built to be flown with a 22mm Diamter Brushless Motor. There will be an updated Version soon to be built with an 28 mm Diameter Motor. If you need Instructions how to build this Plane please check Firefly. It is almost the same, just smaller.
