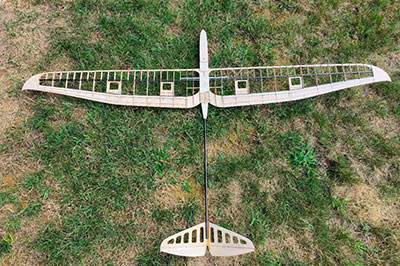

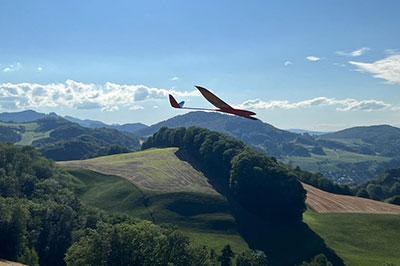

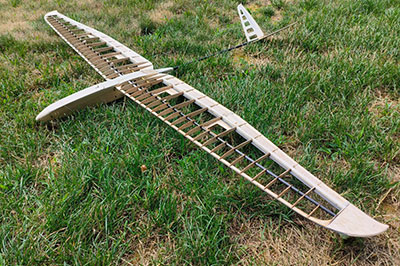

Specifications Alcedo

Wingspan: 160cm
Lenght: 105cm
Overall Weight: ~600 Gr.
Airfoil: HN 354 by Norbert Habe

Items needed to complete Alcedo 1.6m

• 1.5mm Balsasheets
• 2mm Balsasheets
• 2.5mm Balsasheets
• 4mm Balsasheet
• 3mm Plywood Birch
• 1mm Aircraft Plywood
• Carbon Strip 6mm x 1mm x 2m
• 2 Pcs Carbon Tube 6mm x 4mm
• 1 Pcs Carbontube 10mm x 8mm lenght:750mm
• 400mm of 4mm Coarbon Rod
• 400mm Brass Tube 4.2m X 5mm
• Alu Tube or Brass Tube 7mm x 6.1mm
• Carbon Rod 6mm
• 2 Nylonscrews M4
• 2 Notches M4
• Bowdencables 2mm
• Steelwire 0.8mm (for the pushers)
• 2mmm Carbon Rods (2000mm)
• Oracover Coverfoil
• 2x Servos 9mm (D-Power DS-140BB MG or equal)
• 4x Servos 12mm (D-Power DS-225BBMG or equal)
• 2s Lipo 900mah - 1300mah
• Reciever
• and Glue of course...etc.
