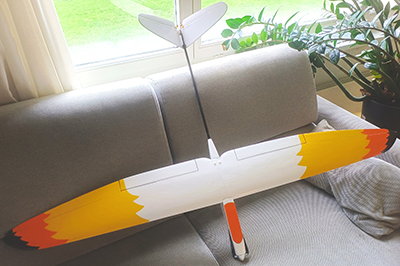

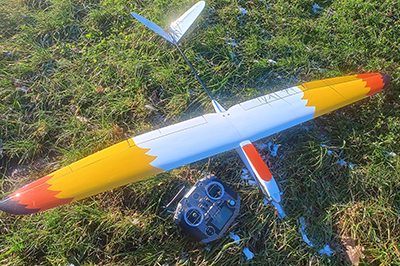

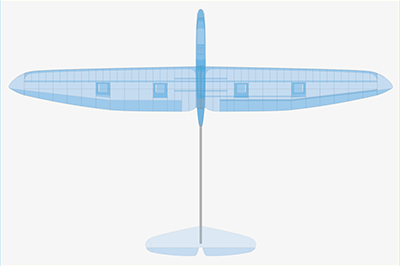

Specifications Falco

Wingspan: 160cm
Lenght: 100cm
Overall Weight: ~800 Gr.
Airfoil: MH 30 by Martin Hepperle

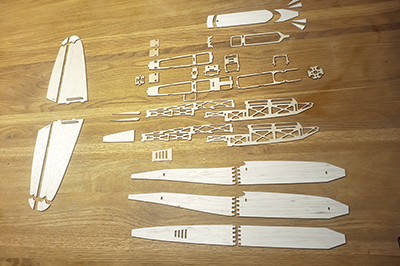

Items needed to complete Falco

  • 1.5mm Balsasheets
  • 2mm Balsasheets
  • 2.5mm Balsasheets
  • 5mm Balsasheet
  • 2.5mm Plywood Birch
  • 1.5mm Aircraft Plywood
  • 2 Pcs Carbon Tube 10mm x 8mm
  • Alu Tube or Brass Tube 7mm x 6.1mm
  • Carbon Rod 6mm
  • 2 Nylonscrews M4
  • 1 Neodym Magnet
  • 2 Notches M4
  • Bowdencables
  • Oracover Coverfoil
  • 2x Servos D-Power DS-225BB MG
  • 4x Servos D Power DS-140BB
  • 3s Lipo 900mah - 1300mah
  • Reciever
  • 28mm Brushless Outrunner
  • and Glue of course...etc.

Download Files here:





Contact me:

Having a Question, a Suggestion or Issues?
Drop me a Mail or contact me on facebook.
Please send me Photos of your Alcedo if you build one, so i can set up a little Gallery.
