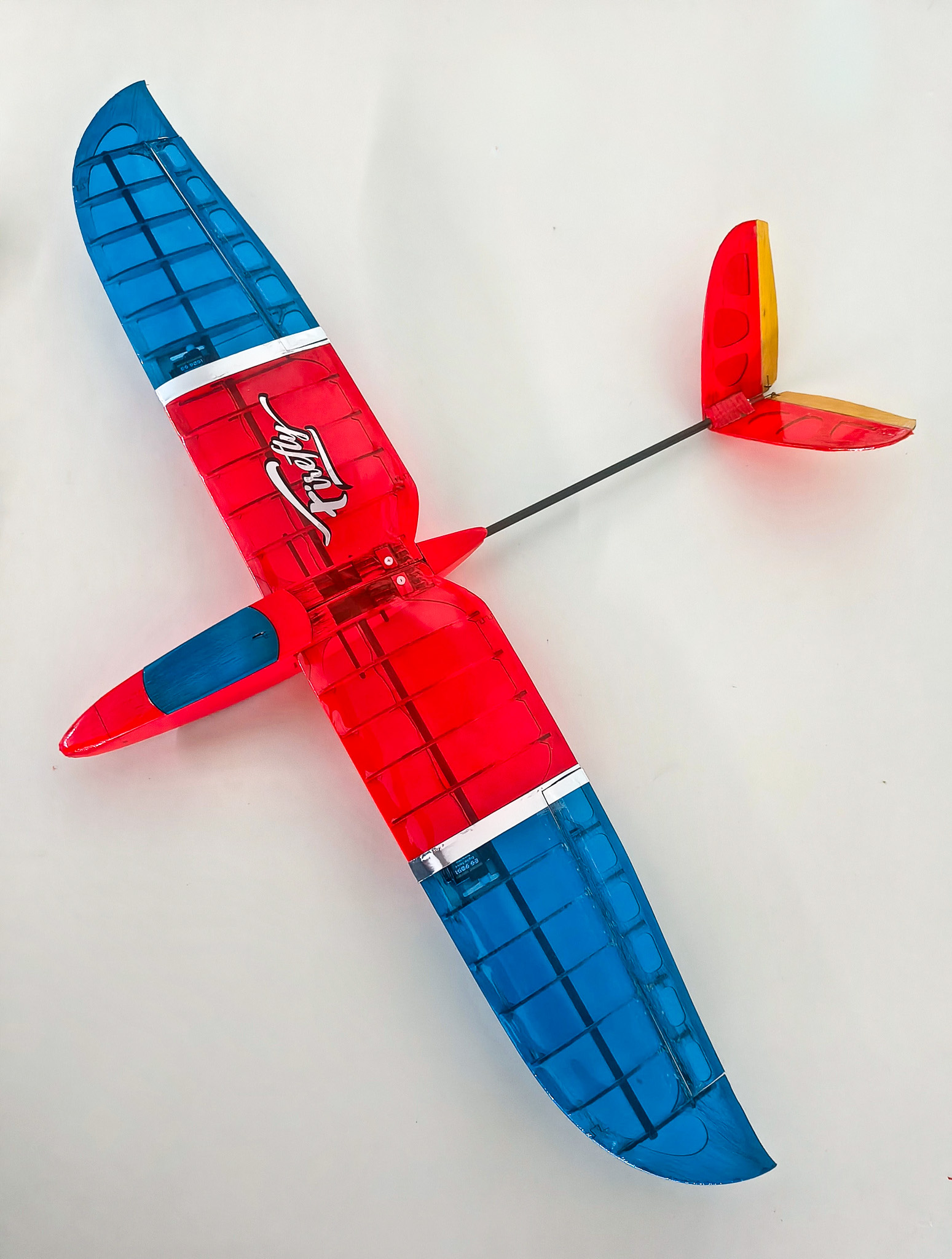

Specifications Firefly Revisited

Wingspan: 80cm
Lenght: 60cm
Overall Weight: ~120 Gr.
Airfoil: AG 35
CG: 36mm from leading edge

Items needed to complete Firefly Revisited

  • 1mm Birch Plywood
  • 1.5mm Birch Plywood
  • 2mm Balsa
  • 2.5mm Blasa
  • 4mm Balsa
  • Carbon Tube 6mm x 5mm
  • Carbon Tube 5mm x 4mm
  • Carbon Rod 3mm for wingjoiners
  • 2 Nylonscrews M3
  • 2 Notches M3
  • Bowdencable 2mm
  • Steelwire 0.8mm (for the pushers)
  • 4x Servos 5gr (EMAX ES9051 or equal for 1S Lipo)
  • 1s Lipo 450mah

Download Files here:


Contact me:

Having a Question, a Suggestion or Issues?
Drop me a Mail or contact me on facebook.
Please send me Photos of your Firefly Revisited if you build one, so i can load it to the wall of fame.

firefly at lukaslacher.ch

Facebook



Firefly Revisited




Wing assembling

I have discarded the removable Tail Structure due to its flimsyness, but you can contact me if you want to build like that, i still got those files.

Watch the video to understand how to build the Wings. I used very heavy 2mm Balsasheets to build a sturdy Plane but if you want it lightweight, you might change that.



Fuselage assembling

This Video shows how to build the Fuselage
